D24214 9210-S

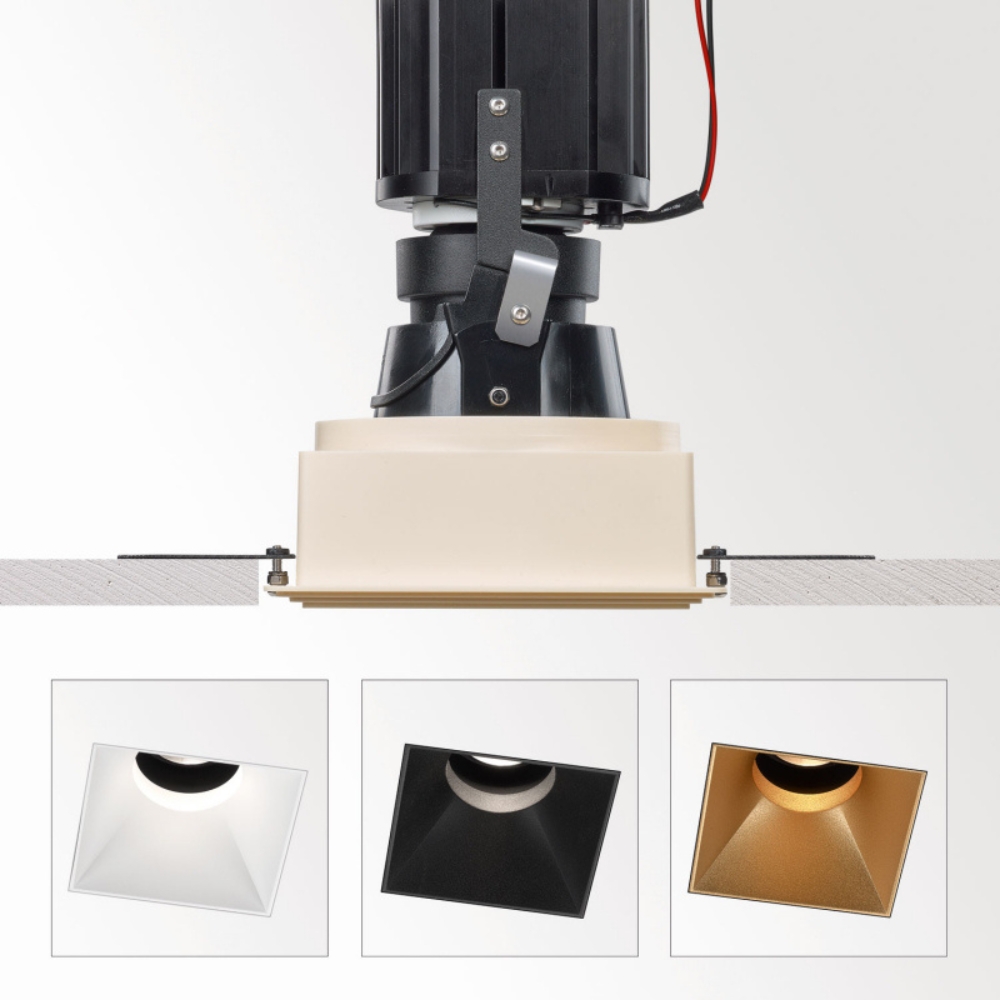

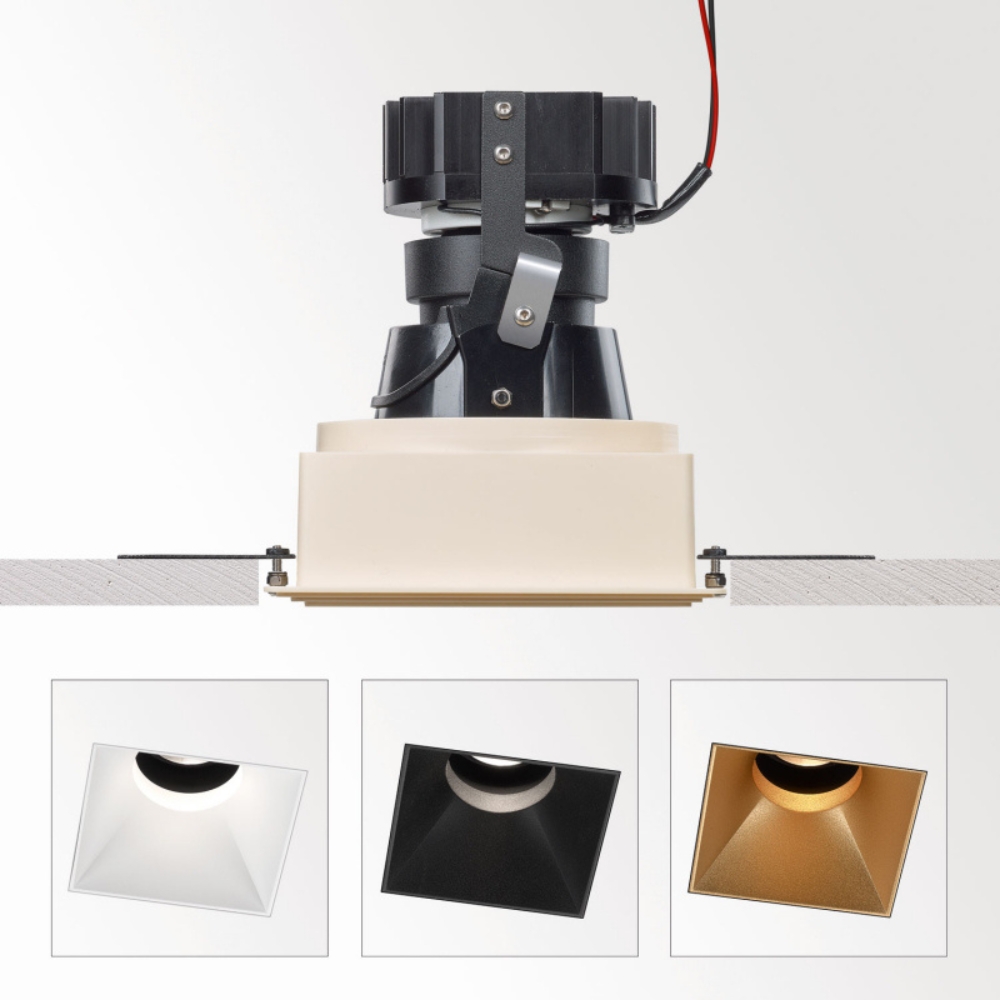

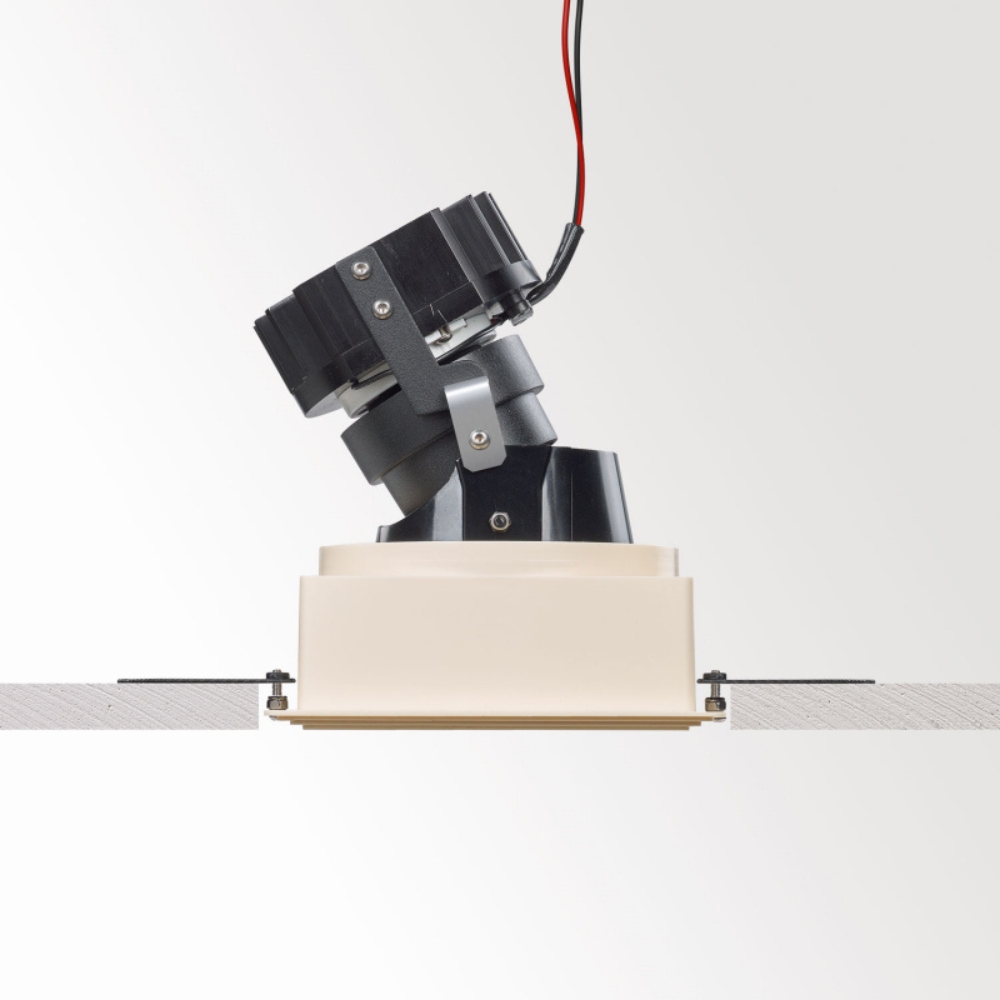

iMAX II SQUARE ADJUSTABLE TRIMLESS

The Soft Ceiling concept enables you to create discreet but diverse lighting schemes using only one luminaire type.
It allows architects and designers to work with different lighting applications, beams and output levels, using unobtrusive and glare-free fixtures for a zero-sightline ceiling.

Thanks to precise engineering, the use of superior lenses and a multitude of accessories, Soft Ceiling fixtures guarantee optimal optic performance and maximum eye comfort.
The vast range of options allow you to work with a Soft Ceiling luminaire throughout the entire project, meeting the different needs of each room, without unnecessary cluttering of the ceiling.
iMax II symbolizes the maximum eye comfort / minimal appearance philosophy, an ideal lighting solution that fits the Soft Ceiling concept.

Color

iMAX II SQUARE ADJUSTABLE TRIMLESS

Specification

Name iMAX II SQUARE ADJUSTABLE TRIMLESS
Model D24214 9210-S
Color Black, White, Gold matt
Material Aluminum

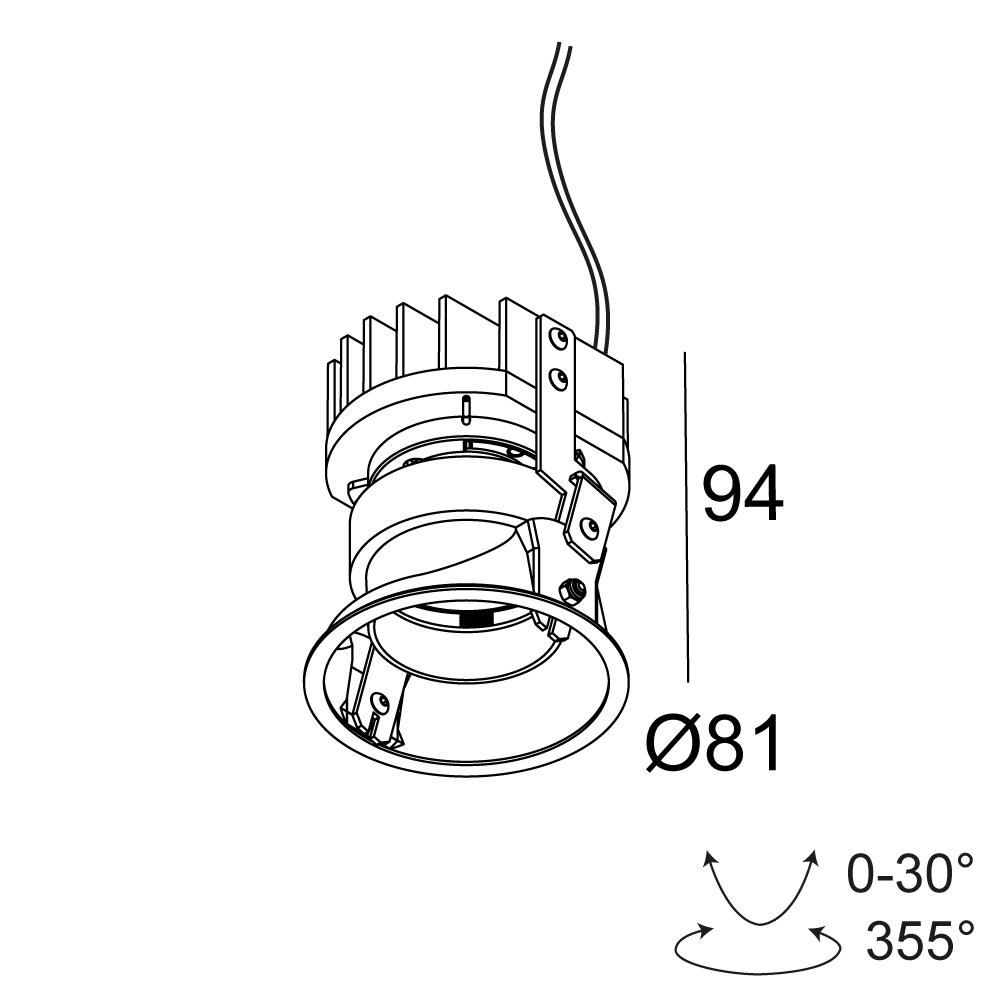

Size Ø81 x H94mm

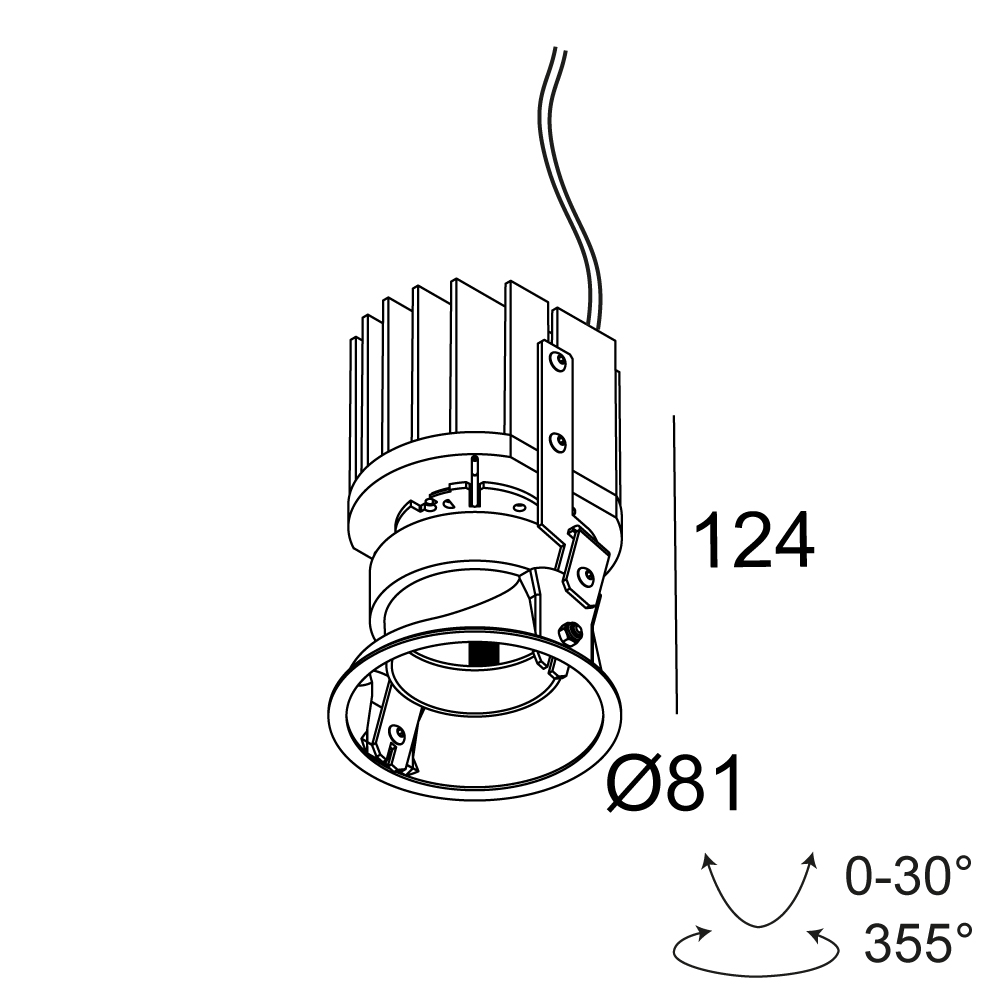

Ø81 x H124mm
Cutout size Ø KIT mm
Source 1 x LED 2-3,2W / CRI>90 / 2700K / 201-280lm
1 x LED 2-3,2W / CRI>90 / 3000K / 229-319lm
1 x LED 6,1-9W / CRI>90 / 2700K / 768-1067lm
1 x LED 6,1-9W / CRI>90 / 3000K / 775-1076lm
1 x LED 11,6-17,2W / CRI>90 / 2700K / 1458-2009lm
1 x LED 11,6-17,2W / CRI>90 / 3000K / 1524-2101lm
Beam angle 6°, 12°, 18°, 20°, 26°, 33°, 39°, 45°
Voltage 110V-220V
Origin Belgium
Designer Delta Light
