MINIGRID IN TRIMLESS

The Grid product family is a longstanding classic in the collection. First as halogen and discharge solutions, later as LED downlight and afterwards updated to the Snap-In principle, a smart and easy way of separating the mounting frame from the LED module, with comfortable installation as a result. This grid range is all about flexibility, as the single or double light units can be directed any way you want.

Color

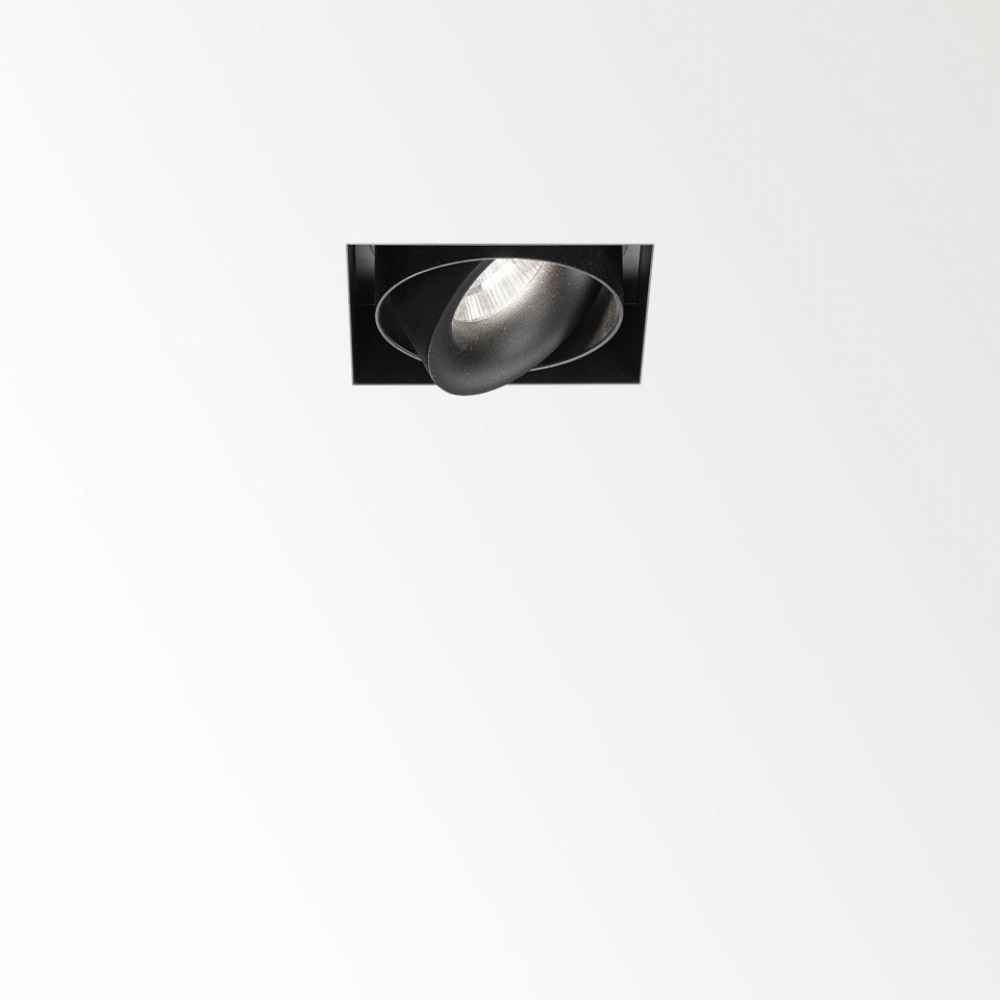

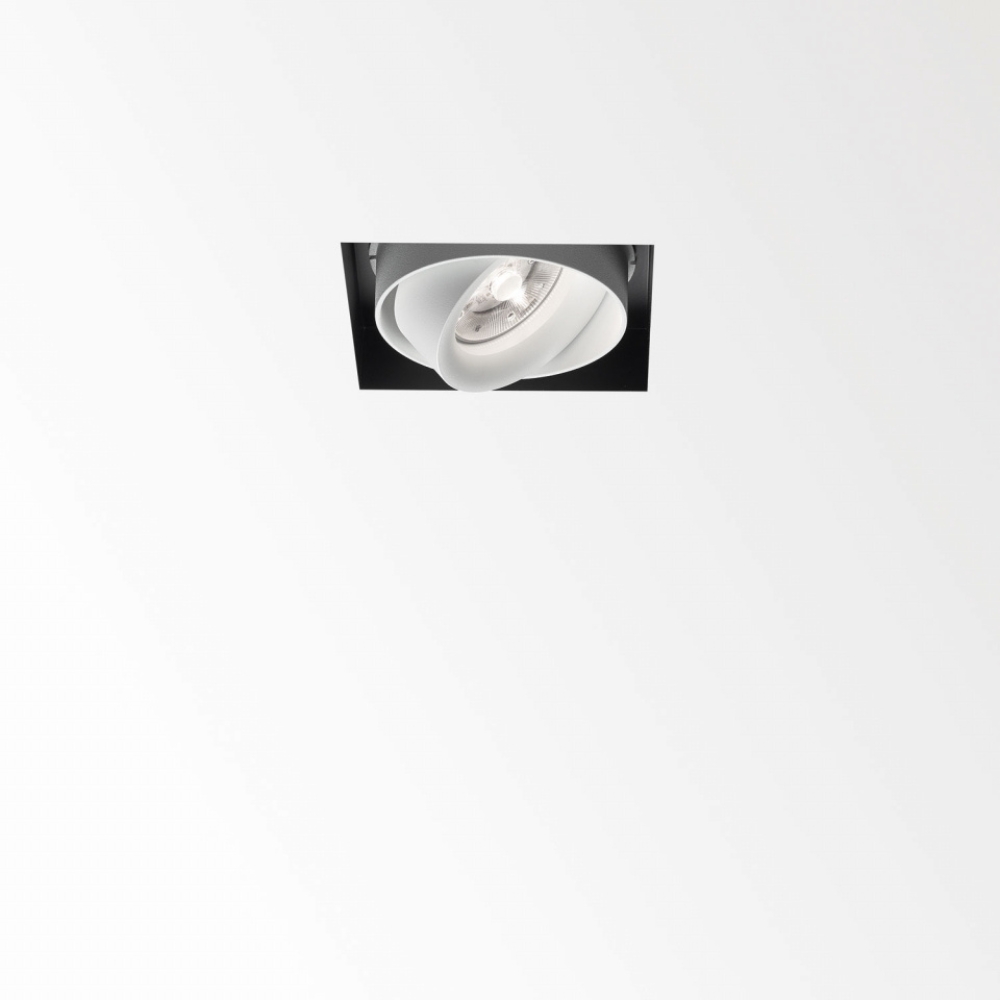

MINIGRID IN TRIMLESS

Specification

Name MINIGRID IN TRIMLESS
Model D100008 0000
Color Black, White
Material Aluminum
Size L104 x W104 x H57mm, Ø86 x H65mm
L104 x W207 x H57mm, Ø86 x H65mm
Cutout size Ø KIT mm
Source 1 x LED 2-4,3W / CRI>90 / 2700K / 201-351lm
1 x LED 2-4,3W / CRI>90 / 3000K / 229-400lm
1 x LED 7,1-10,4W / CRI>90 / 2700K / 779-1083lm
1 x LED 7,1-10,4W / CRI>90 / 3000K / 812-1128lm
2 x (LED 2-4,3W / CRI>90 / 2700K / 201-351lm)
2 x (LED 2-4,3W / CRI>90 / 3000K / 229-400lm)
2 x (LED 7,1-10,4W / CRI>90 / 2700K / 779-1083lm)
2 x (LED 7,1-10,4W / CRI>90 / 3000K / 812-1128lm)
Beam angle 6°, 18°, 33°, 45°, 50°
Voltage 110V-220V
Origin Belgium
Designer Delta Light
