D24217 9210-S

iMAX II SQUARE ADJUSTABLE

The Soft Ceiling concept enables you to create discreet but diverse lighting schemes using only one luminaire type.
It allows architects and designers to work with different lighting applications, beams and output levels, using unobtrusive and glare-free fixtures for a zero-sightline ceiling.

Thanks to precise engineering, the use of superior lenses and a multitude of accessories, Soft Ceiling fixtures guarantee optimal optic performance and maximum eye comfort.
The vast range of options allow you to work with a Soft Ceiling luminaire throughout the entire project, meeting the different needs of each room, without unnecessary cluttering of the ceiling.
iMax II symbolizes the maximum eye comfort / minimal appearance philosophy, an ideal lighting solution that fits the Soft Ceiling concept.

Color

Black White

Specification

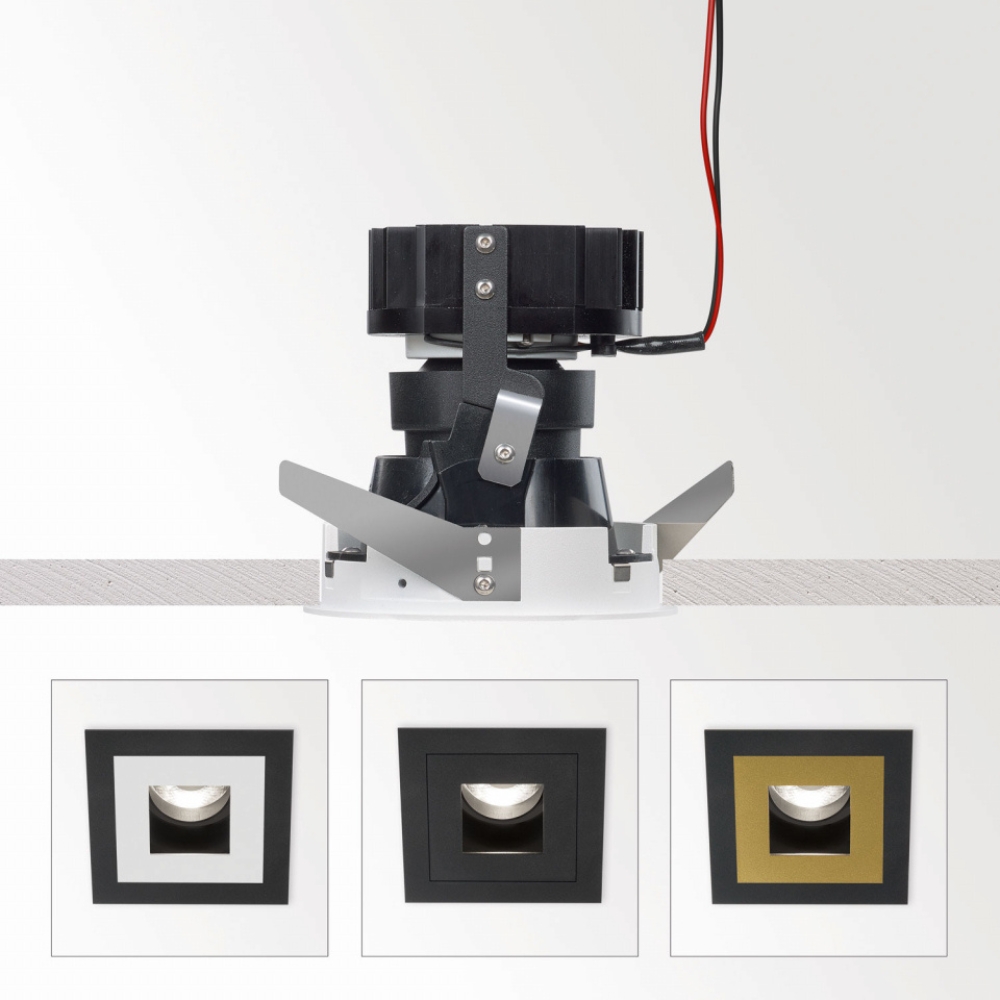

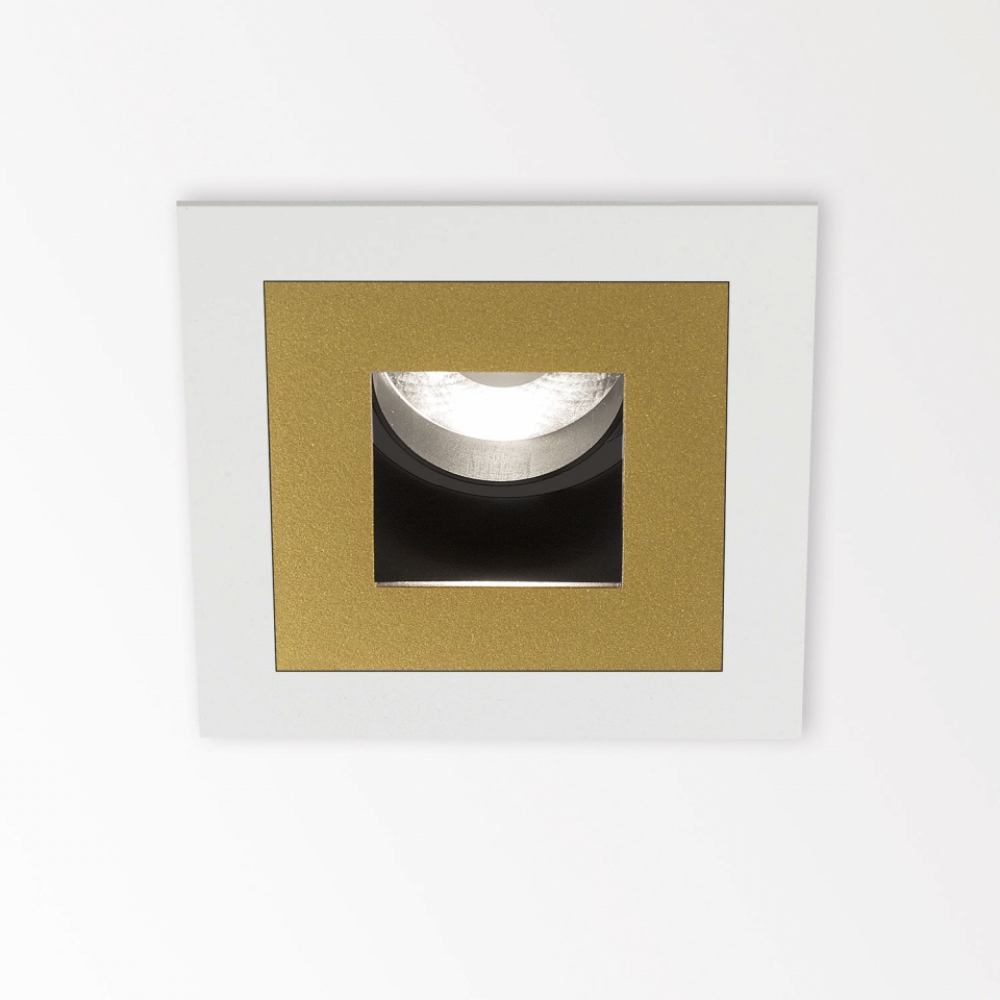

Name iMAX II SQUARE ADJUSTABLE

Model D24217 9210-S

Color Black, White

Material Aluminum

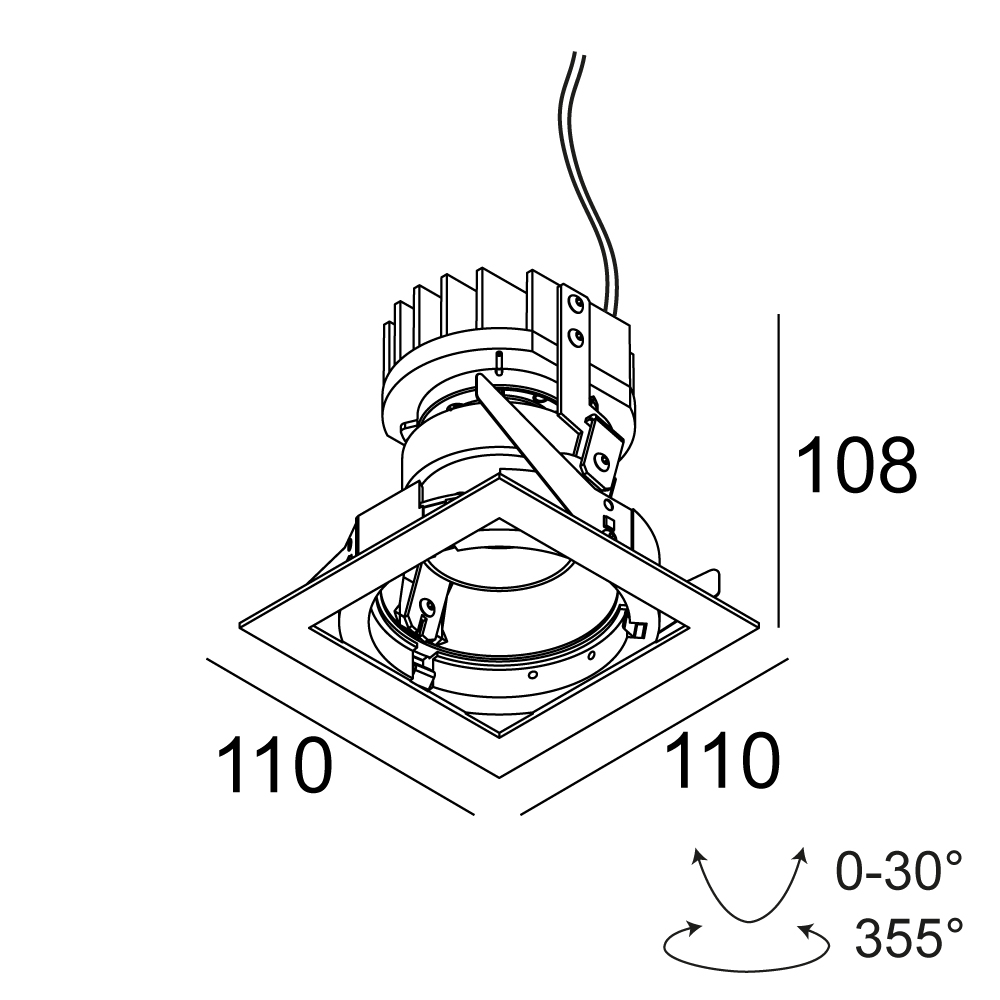

Size L110 x W110 x H108mm
L110 x W110 x H140mm
Cutout size Ø98mm

Source 1 x LED 2-3,2W / CRI>90 / 2700K / 201-280lm
1 x LED 2-3,2W / CRI>90 / 3000K / 229-319lm
1 x LED 6,1-9W / CRI>90 / 2700K / 768-1067lm
1 x LED 6,1-9W / CRI>90 / 3000K / 775-1076lm
1 x LED 11,6-17,2W / CRI>90 / 2700K / 1458-2009lm
1 x LED 11,6-17,2W / CRI>90 / 3000K / 1524-2101lm

Beam angle 6°, 12°, 18°, 20°, 26°, 33°, 39°, 45°

Voltage 110V-220V

Origin Belgium

Designer Delta Light
